Schemes rules

To make a valid scheme, you must follow some rules. In fact, this is very simple.
You have five elements :

the background	: 'back.bmp'
the begin of the bar	: 'bbar.bmp'
the bar	: 'bar.bmp'
the end of the bar	: 'ebar.bmp'
the cache	: 'cache.bmp'

Fig. 1


Fig. 2

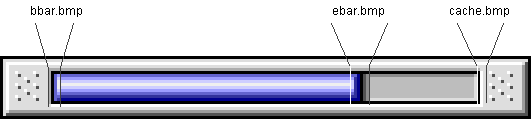

Fig. 1 (the default scheme) shows the different parts of the scheme.

What you MUST do :

• Must be a back.bmp
• Must be a bar.bmp
• Background must be 177 in width and 21 in height

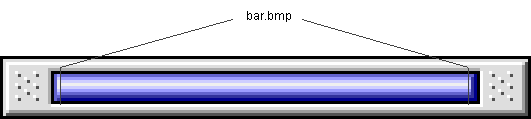

• Bar.bmp must be designed as the memory was at 100% (see Fig. 2)
• Beginning of the bar-place design in the back.bmp must be at (16,4)
• End of the bar-place design in the back.bmp must be at (159,4)
• Cache must begin at (159,4)
• Cache width must be the width of the ebar shadow (In Fig. 1 : 3)

What you CAN do :

• Missing bbar.bmp, ebar.bmp or cache.bmp (see 'Sweetener' scheme for example)
• Bbar.bmp can be any width
• Ebar.bmp can be any width
• Uh ... try ;)

Tips :

• Launch the 'Scheme Checker' tool to see if your scheme is a valid one. You can download it here.
